The interface use for external command
The IExternalCommand Interface
To introduce your Revit plugin as an external command you have to use the "IExternalCommand" interface to your command class

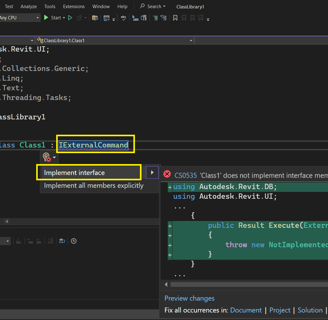

Click on the implement interface to implement it

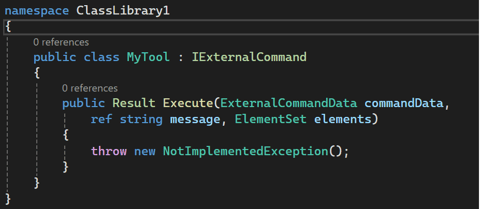

After implementing the external command interface it will be look like below snap
Whatever you want to perform, that logic shoould be now in this Execute method.
You can call method from another class inside this execute method to maintain code standard.

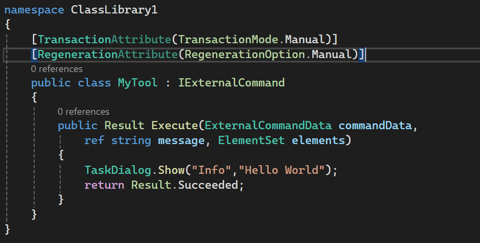

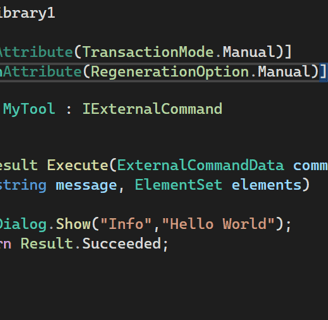

Let us see an exmaple of a external command which will show a text message "Hello World" which clicked.
Write<?xml version="1.0" encoding="utf-8"?>
<RevitAddIns>
<AddIn Type="Command">
<Name>CommandClass</Name>
<FullClassName>ClassLibrary1.MyTool</FullClassName>
<Text>CommandClass</Text>
<Description>My Tool</Description>
<VisibilityMode>AlwaysVisible</VisibilityMode>
<Assembly>C:\Users\CHAYAN\OneDrive\Desktop\ClassLibrary1\ClassLibrary1\bin\Debug\ClassLibrary1.dll</Assembly>
<AddInId>e726af91-fcd6-4a6c-ae30-114af22c602f</AddInId>
<VendorId>ADSK</VendorId>
<VendorDescription>Autodesk, Inc, www.autodesk.com</VendorDescription>
</AddIn>
</RevitAddIns> your text here...
Below is the corresponding example of the manifest file.
See the Bold lines.
The first one that is <FullClassName>Your namespace.Your class name</FullClassName>
The second highlighted entry is about the assembly location, means the location of your dll.

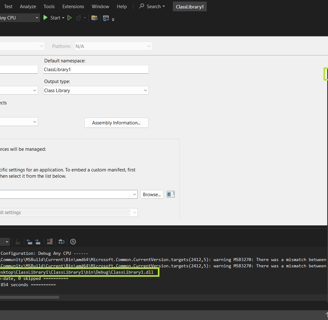

C:\Users\CHAYAN\OneDrive\Desktop\ClassLibrary1\ClassLibrary1\bin\Debug\ClassLibrary1.dll copy the dll location from the visual studio output section.
To get the dll and location you have to build the solution.

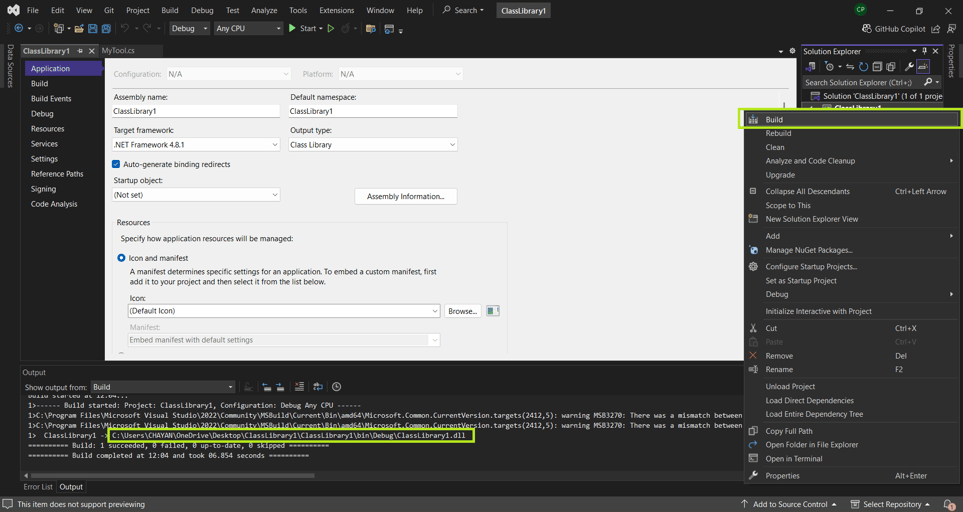

To Build just right click on the solution and choose Build option.

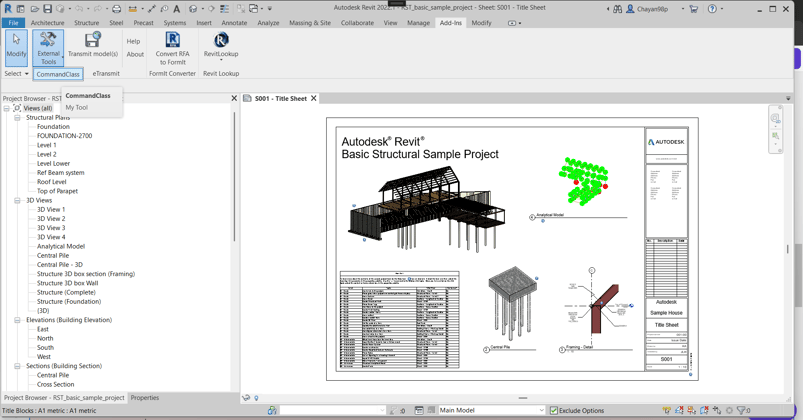

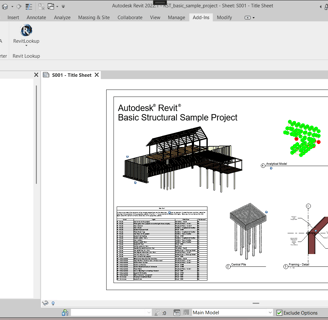

Load the tool in Revit

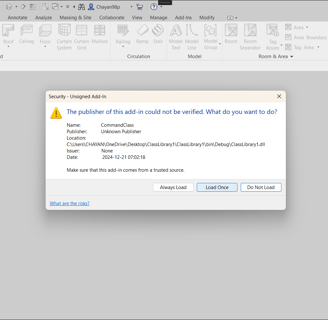

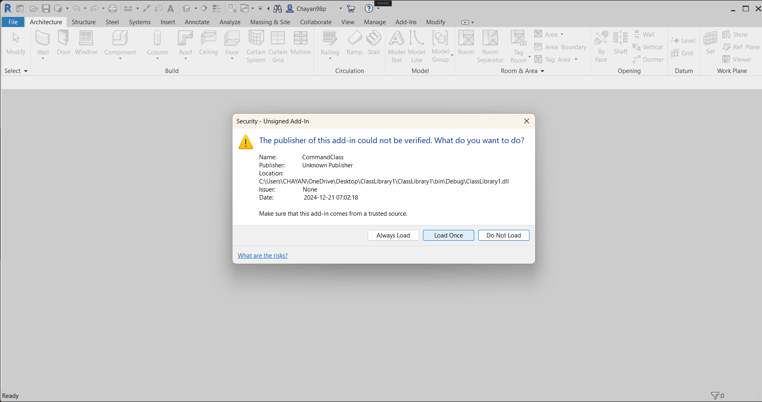

After opening the Revit a pop will come like below snap
Click on "Load once" to load the add ins.
[TransactionAttribute(TransactionMode.Manual)]
It means that the external command is responsible for managing database transactions explicitly. The command will need to start, commit, or roll back transactions as needed, rather than relying on automatic transaction management.
[RegenerationAttribute(RegenerationOption.Manual)]
This can be useful when the command needs to perform specific actions to regenerate parts of the application or data, rather than relying on automatic regeneration mechanisms.
Note :

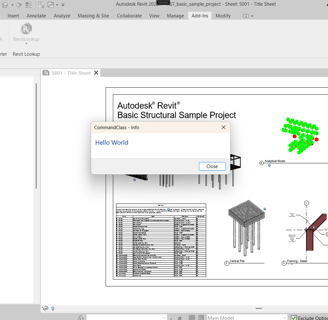

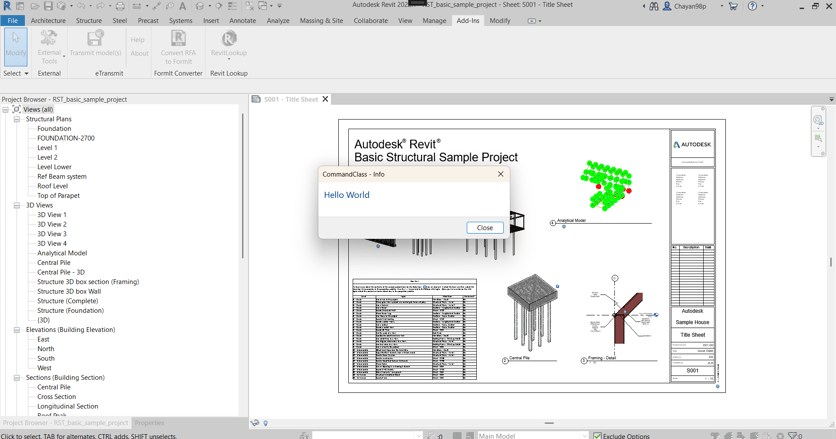

Here is the output "Hello World" we got!!
